Attention! There are some limitations on work of our software under Windows 8.1, i.e.: graphs with several output devices for IP and/or ASI broadcasting are not started.
Release version: 5.6.0
Releasedate: 27.03.2014
Products: Forward Т, Forward ТS, Forward Goalkeeper, Forward T and Forward TS plugins, SoftLab-NSK video codecs, Forward T Lite
What's new:
Forward T updates list
Forward TS updates list
Forward Goalkeeper updates list
Forward T and Forward TS plugins updates list
Important:
- Each setup package of software used for working with FD300/FD322/FD422/FD842 boards has corresponding drivers for the boards in it
- Described below software can work with FD300/FD322/FD422/FD842 boards with any serial numbers
- For working of software with FD322/FD422/FD842 boards the Windows XP SP2/SP3, Windows 7 32/64-bit, Windows 8.1 32/64-bit OS can be used
- For working of software with FD300 board the Windows XP SP2/SP3, Windows 7 32-bit OS, Windows 8.1 32-bit OS can be used
- Each software setup package installs the whole set of video codecs developed by SoftLab-NSK
Select necessary software and follow the link to get instructions on installation:
Install Adobe Acrobat Reader to read documents in PDF format
It can be needed to install WinZip to open zipped archives
To download separate documents, go to the "Documentation" section.
 We highly recommend downloading first needed files on a local disk for further working with them without downloading again. Right-click above link, click “Save As”, select destination, download file and only then start it for execution.

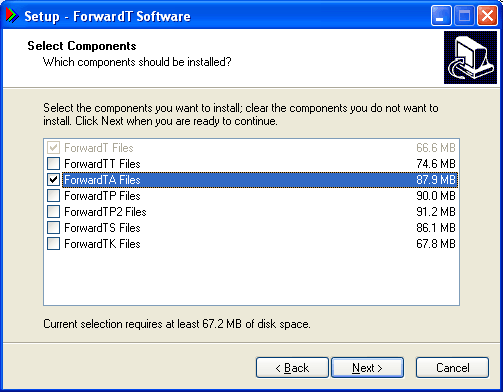

Note that in step 3 you must check only products for which ones you have registration (example for the Forward ТА product):

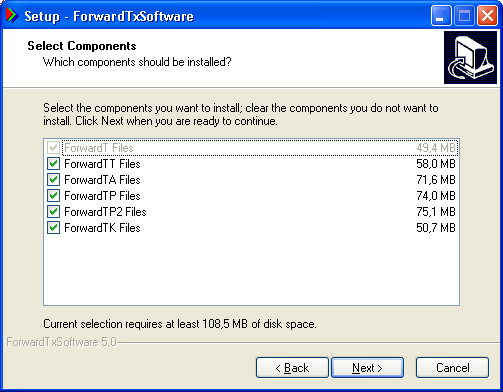

Specify all products to be installed if you are not sure. Contact the Support if you want to get information on what registrations for what products do you have.
 |
Software for broadcast preparing without FD300/FD322/FD422/FD842 boards |
| Lite version to work without any boards. It is used to organise separate work places for broadcast preparing and doesn't include drivers, services and applications for boards. ForwardTx Lite software is absolutely free. |
Install software in the following order:
-
Microsoft .NET Framework 3.5 SP1 package must be installed for a correct working of Forward T Lite software.
- For Windows XP SP2/SP3 OS download package and install it.
Important: package is installed once,the second installation of our software does not require to install the package again.
- The Windows 7 (32/64-bit) OS requires nothing. Corresponding package is included and activated already.
- The Windows 8.1 (32/64-bit) OS requires package activation only.
-
 Install current version of Forward T Lite software (5.6.0)
( [an error occurred while processing this directive] )
- Reboot PC
|
|
 |
Plugins for Forward T and Forward TS |
 The plugins for the Forward T and Forward TS product lines are additional program options. They are purchased separately. See more
Install software in the following order:
-
 Install Forward T or Forward TS software of the current version (5.6.0) with all available updates (!)
-
 Install current version of ForwardT/TS Plugins (5.6.0)
( [an error occurred while processing this directive] )
See updates list of the current version
This setup includes the following plugins: AutoDetect, SLStreamCapture, SLNewsTitler, SLTelephone, SLNewsLine, FDVideoMixer, RemoteOnAir, IPCamera, IPOut/ASIOut, IP2PostPlay, PostPlay Export, SLRemoteCapture, MXF Playback |
|
 |
Software for Forward TS products (client) |
| Client version, used for a remote control only |
 Install software in the following order:
-
Microsoft .NET Framework 3.5 SP1 package must be installed for a correct working of Forward TS (client) software.
- For Windows XP SP2/SP3 OS download package and install it.
Important: package is installed once,the second installation of our software does not require to install the package again.
- The Windows 7 (32/64-bit) OS requires nothing. Corresponding package is included and activated already.
- The Windows 8.1 (32/64-bit) OS requires package activation only.
-
 Install current version of Forward TS Client (5.6.0)
( [an error occurred while processing this directive] )
- Reboot PC
- Read the manual
( 5.1M )
|
|
Others
| Resource for downloading |
Comments |
Download |
 ForwardTxFreeTools |
Separate installer for the following programs:
Allows working distantly, without installing of the whole Forward T or Forward TS software set |
[an error occurred while processing this directive]
|
 Video codecs set |
Separate installer of all SoftLab-NSK video codecs for 32-bit and 64-bit OS |
[an error occurred while processing this directive]
|
Forward WatchDog Box and GPI Box drivers
(ZIP archive) |
Drivers for WatchDog Box and GPI Box USB devices in ZIP archive
Unzip the archive and follow instruction on installation given in the document |
[an error occurred while processing this directive]
|
| Forward WatchDog Box 2 drivers for 32-bit OS |
Forward WatchDog Box USB device drivers of 2.0 version for 32-bit OS |
[an error occurred while processing this directive]
|
| Forward WatchDog Box 2 drivers for 64-bit OS |
Forward WatchDog Box USB device drivers of 2.0 version for 64-bit OS |
[an error occurred while processing this directive]
|
Examples for Forward T software
(ZIP archive) |
Examples of clock projects for the TVClock program, examples of title projects for the FDTitle Designer program and other examples for Forward T software in ZIP archive |
[an error occurred while processing this directive]
|
Archive with documentation on Forward T software
(ZIP archive) |
All documentation on Forward T products set in PDF in one ZIP archive |
[an error occurred while processing this directive]
|
SDK set for Forward T software
(ZIP archive) |
SDK (software development kit) for developing one's own applications using the FD300 board in one ZIP archive (documentation, include files, samples) |
[an error occurred while processing this directive]
|
| Drivers for HASP USB key for Forward TS software (setup) |
Installer of drivers for HASP USB key for Forward TS products |
[an error occurred while processing this directive]
|
|
|
Forward Goalkeeper
Install software in the following order:
