SLStreamCapture - archiving of TV channels broadcasting

Where to buy
Pricelist
Current version
Documentation (PDF, 2.2M)
Support
  All Plugins List

Important: SLStreamCapture is an additional option that is separately purchased.

We grant a temporary registration for 1 - 3 months testing any/all of the plugins. Please, inform Support of your FD322/FD422/FD842 board serial number or serial number of HASP key and the temporary registration will be sent to you.

Can be used with:

The SLStreamCapture software is designed for archiving of TV channels broadcasting. There are single-channel (from 1 input/output of the FD322/FD422/FD842 board, the SLStreamCapture license) and dual-channel (from 2 inputs of the FD322/FD422/FD842 board, the SLStreamCapture2 license) versions of the plugin.

SLStreamCapture allows:

• Recording files in the Windows Media format (wmv). WMV files can be played at any PC with Windows. There won't be any difficulties caused by impossible playback of files because of a lack of the corresponding codec;
• Receiving of files of a not big size. It is unnecessary to create a special file server with a large volume of hard discs to store the archive for some period specified by the law;
• Recording according to the schedule;
• Recording with different quality, frame rate and extension. Recording material can be used not only for controlling unit (low quality and extension) but also for further releasing of materials broadcasted on air (e.g. news, broadcasts etc.) with high quality and TV extension;
• "Typing" of date and time in video frame. Location, font, size, color of symbols and of background can be specified for marks;
• Archiving of video materials broadcasted on air from servers of any manufacturers;

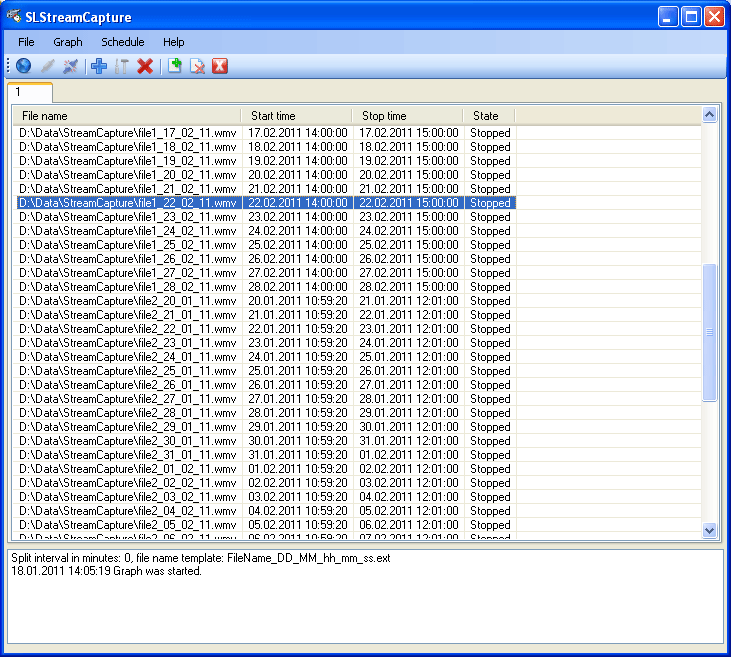

SLStreamCapture has the following scheme: client/server. Client application can be closed when record is configured. However, recording will be automatically implemented. It allows air recording in case of PC emergent rebooting.

Recording can be organized in different ways.

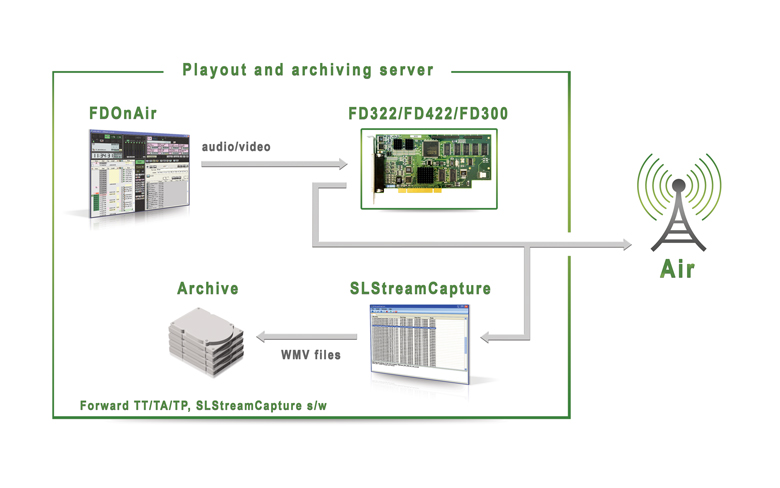

1. SLStreamCapture is located on the same PC from which broadcasting is implemented. Recording will be executed from the FD322/FD422/FD842 board output in this case.

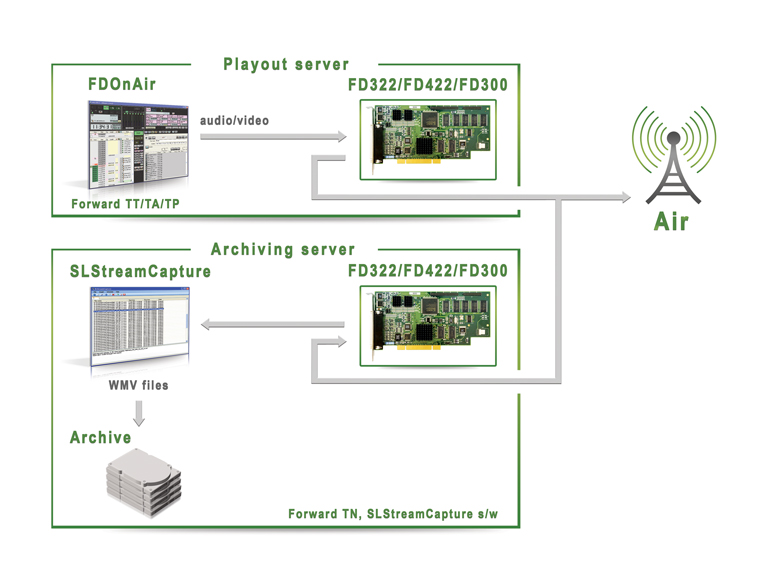

2. SLStreamCapture is located on PC from which broadcasting is not implemented. The I/O board FD322/FD422/FD842 is plugged to the archive PC in this case. Another board (the additional one) is used for receiving of analog signal. Recording is executed from the FD322/FD422/FD842 board input.

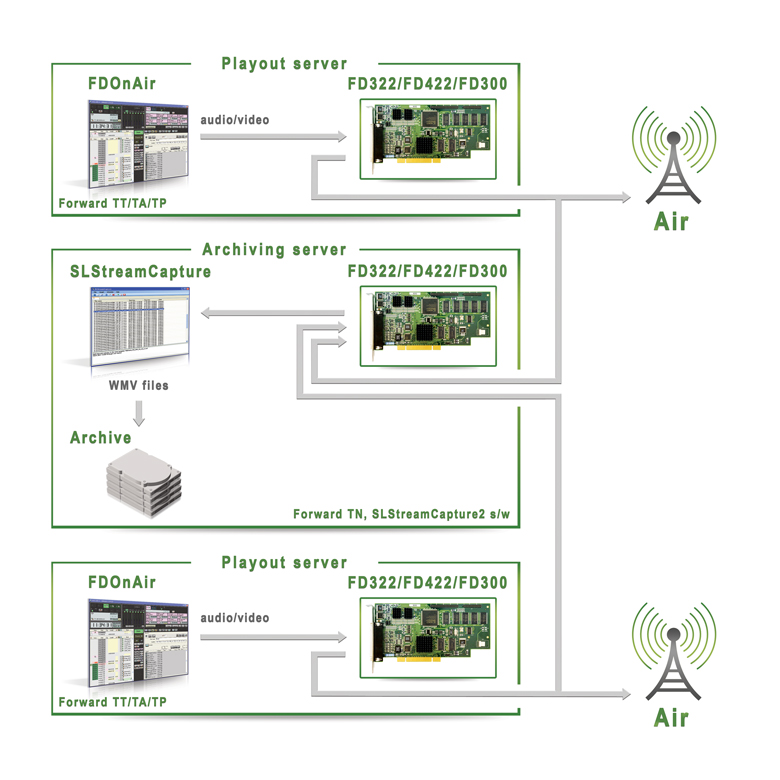

3. SLStreamCapture2 can be installed on PC from which broadcasting is not implemented to record several channels. The FD322/FD422/FD842 board is installed on archiving PC in this case. Another board (the additional one) is used for receiving of analog signals. Recording is executed from 2 inputs of FD322/FD422/FD842 boards.

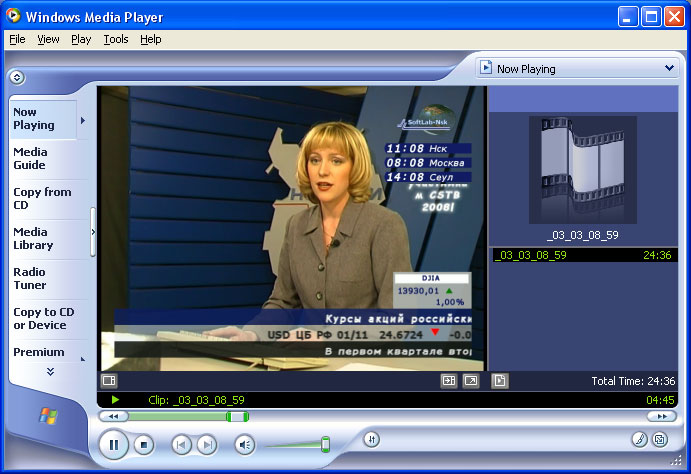

Recorded files can be played at any PC with Windows. There won't be any difficulties caused by impossible playback of files because of a lack of the corresponding codec.

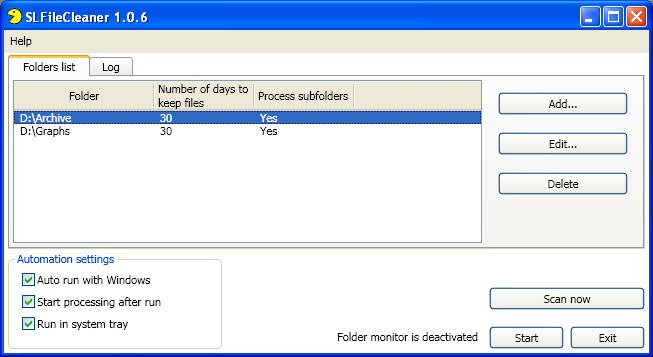

Material recorded by any TV company must be stored during a specific period under the law. SLFileCleaner application deletes automatically files whose storage time is expired.

The utility allows:

• selecting folders where archive files are stored;
• configuring duration of files storing in different folders;
• deleting of files both - manually/automatically.

 For more detailed information contact Support. Information on prices can be found in the "Where to buy" section. You can download a current version of plugins software in the "Download" section. Detailed information on plugins is available in the "Documentation" section.
