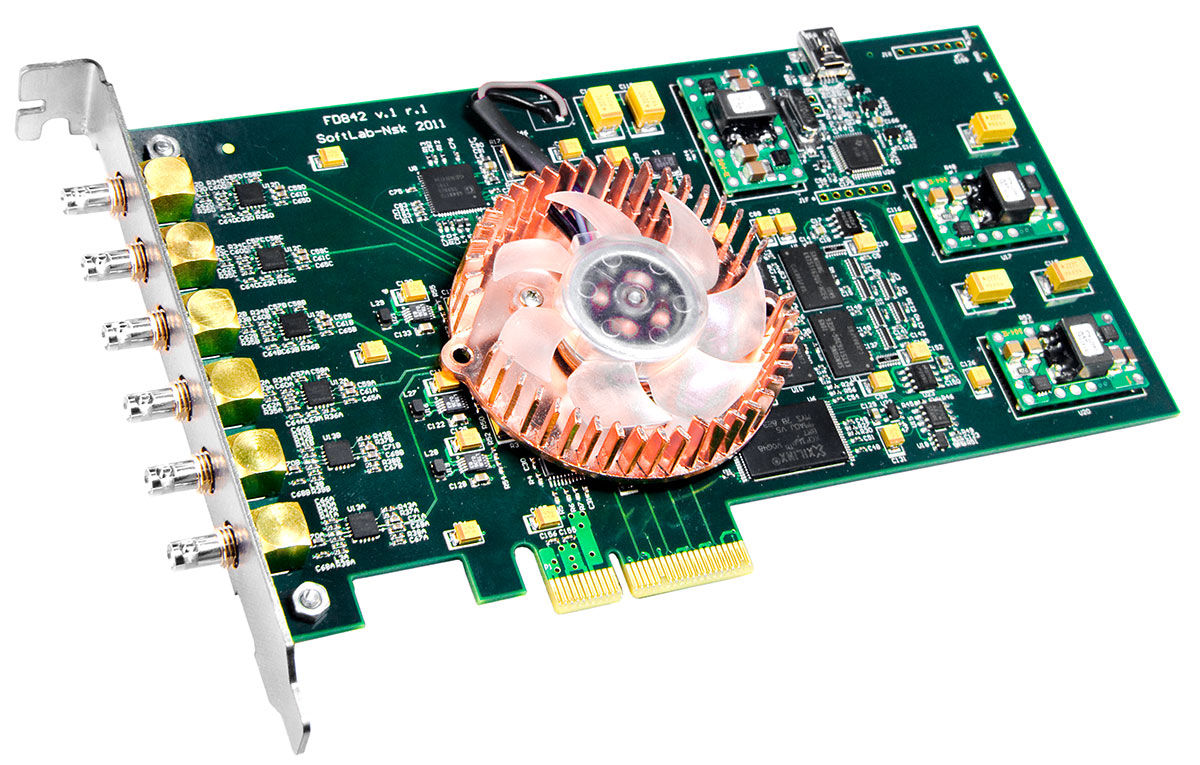

FD842 Board
 The FD842 board supports input/output/processing of HD/SD-SDI digital video signals. The FD842 board has 4 inputs and 2 outputs. Also the FD842 board allows working in the Fill and Key mode used for external mixing. The board is a hardware component of all multichannel products: Forward Goalkeeper, Forward Referee, Focus Virtual Studio, Forward TS, Forward Tx.
The FD842 Board Specification
| Bus |
PCI Express x4 |
| Inputs |
4 x HD-BNC, 10-bit
- SD-SDI: SMPTE 259M
- HD-SDI: SMPTE 292M, SMPTE 274M, SMPTE 296M
|
| Outputs |
2 x HD-BNC, 10-bit
- SD-SDI: SMPTE 259M
- HD-SDI: SMPTE 292M, SMPTE 274M, SMPTE 296M
Two independent outputs or Fill+Key |
| Supported OS |
Windows XP SP2/SP3 (32-bit), Windows 7 (32-bit), Windows 7 (64-bit) |
| Video format |
- SD: PAL/NTSC
- HD:
- 720p 50/59.94/60 (50/59.94/60 fps)
- 1080i 50/59.94/60 (25/29,97/30 fps)
|
| Audio |
24-bit SDI Embedded,
2 channels of stereo sound per 1 video input/output
- SD-SDI: SMPTE 272M-A
- HD-SDI: SMPTE 299M
|
|
|
